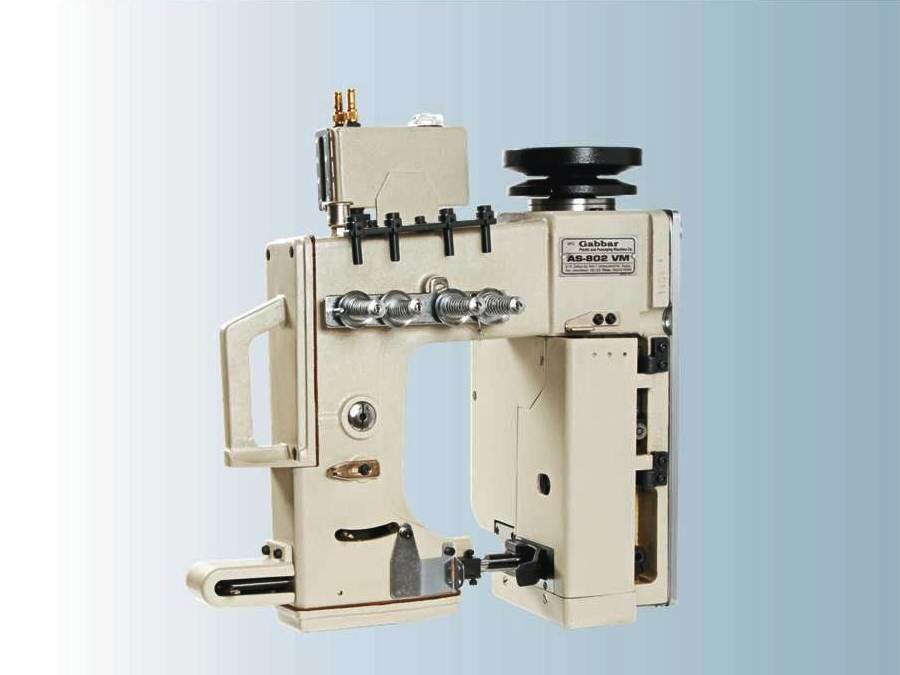

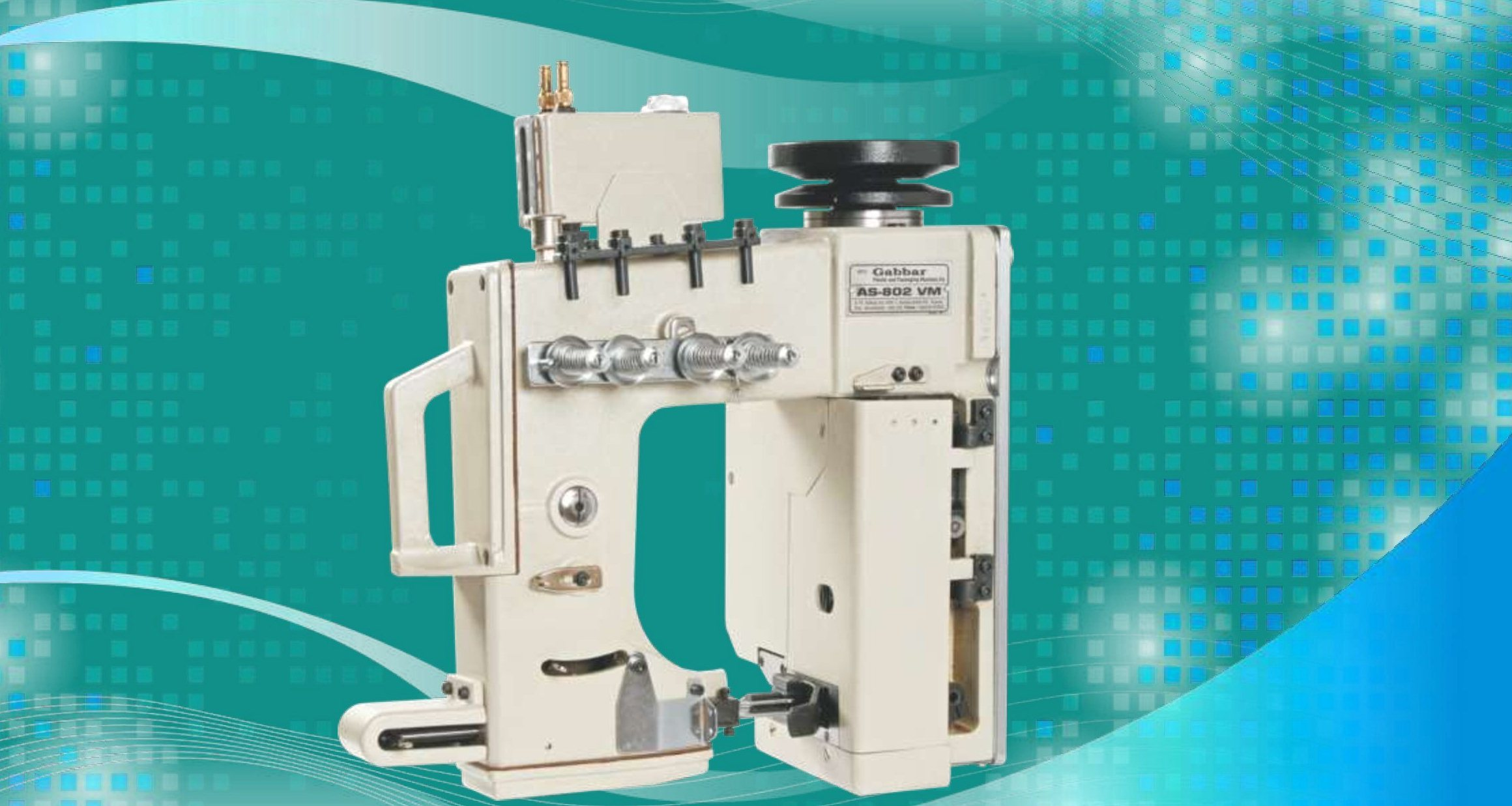

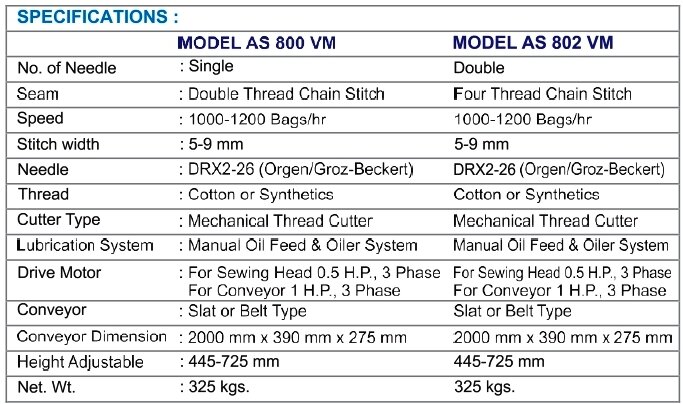

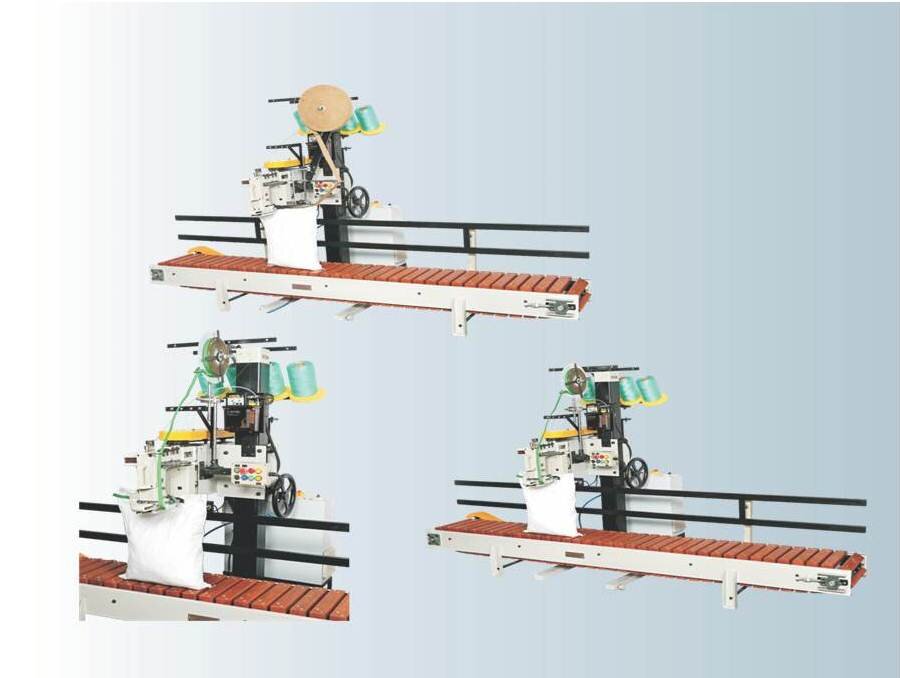

MODEL AS 800 VM, 802 VM
(Double Action Foot Switch Operated Mechanical Cutter for Cutting Thread)
MODEL AS 800 ATC, 802 ATC
(Auto Start, Stop & Auto Thread Cutting System with Bag Infeeder)
SPECIAL FEATURES MODEL 800 VM, 802 VM
• Sturdy, Rigid, Easy to Operate and Efficient Bag Closing Machine for Closing Mouths of Field Bags.
• In Industries Like Fertilizers, Sugar, Rice/Flour , Cattle/poultry Feed, Powder Milk etc.
• Moving Parts in Main Housing Tottaly sealed Against Dirt, Dust and Foreign Particles.
• The Stitch width is Adjustable From 5mm to 9 mm.
• Provision of a Variable Speed Pulley Allows Easy Synchronization with an Existing Conveyer.
• Ease of Inspection and Maintenance is Ensured by a Simple Michanism.
• Capable of Stitching Filled Bags of all Kinds like H.D.E.P, PP, Jute, PolyJute, Hessian & Craft Paper Bags with Synthetics or Cotton thread.

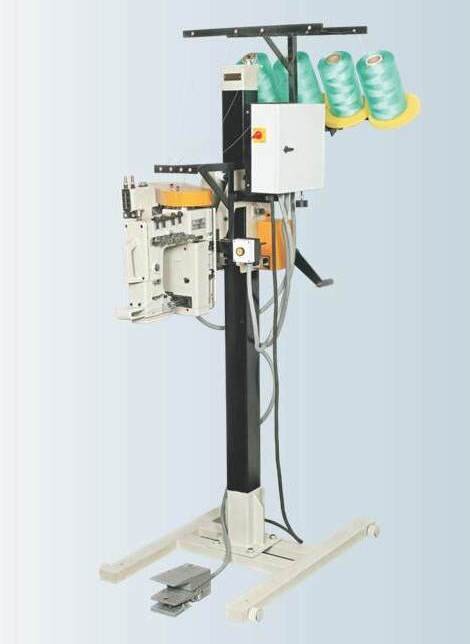

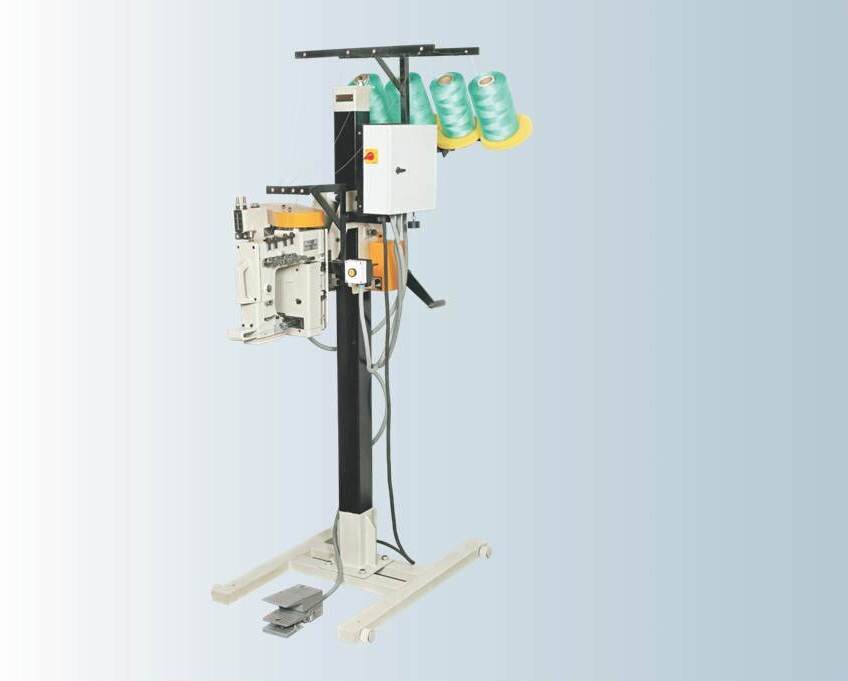

• Special Designed Pedestal Column for Dual Head System.

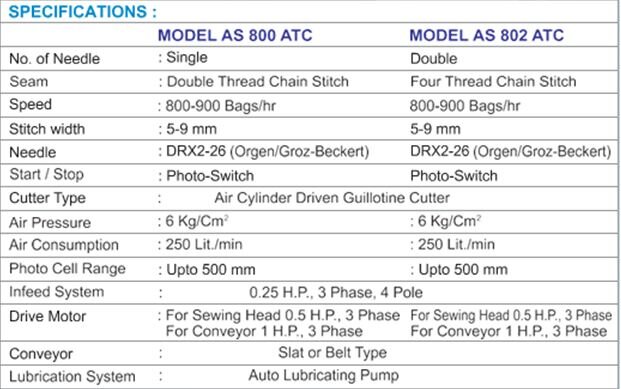

MODEL AS 800 ATC, 802 ATC
SPECIAL FEATURES
• All The Features Contained by Model AS 800 VM & 802 VM.
ADDITIONAL FEATURES

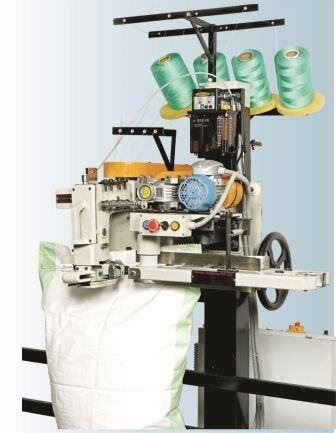

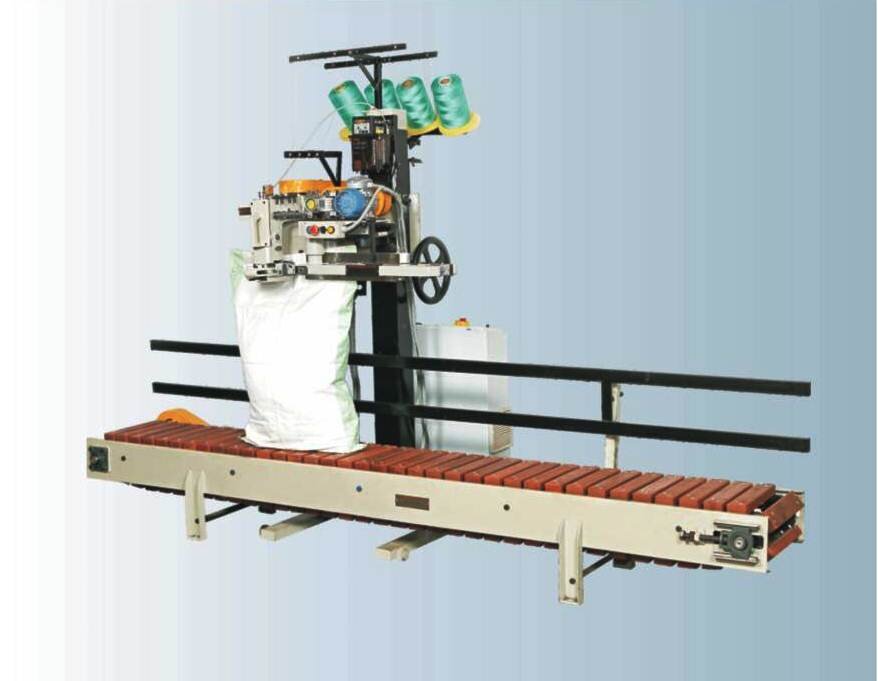

• Single/Double Needle, Two / Four Thread, Chain Stitch Heavy Duty, Automatic Bag Closing Machine With Auto Start, Stop & Auto Thread Cutting System with Automatic Bag Infeed Devices.
• Automatic Bag Infeed Device for Plain Sewn Closure on PP / PE Woven Cloth Bags.
• The Upper Edge of the Sack is Smoothed by Two V-Belts Running in Opposite Direction & is Positively Transported the Bags to the Sewing Machine.
• In Feed Speed Standard 10 M/Min. While Ordered Specify Conveyor Speed.
